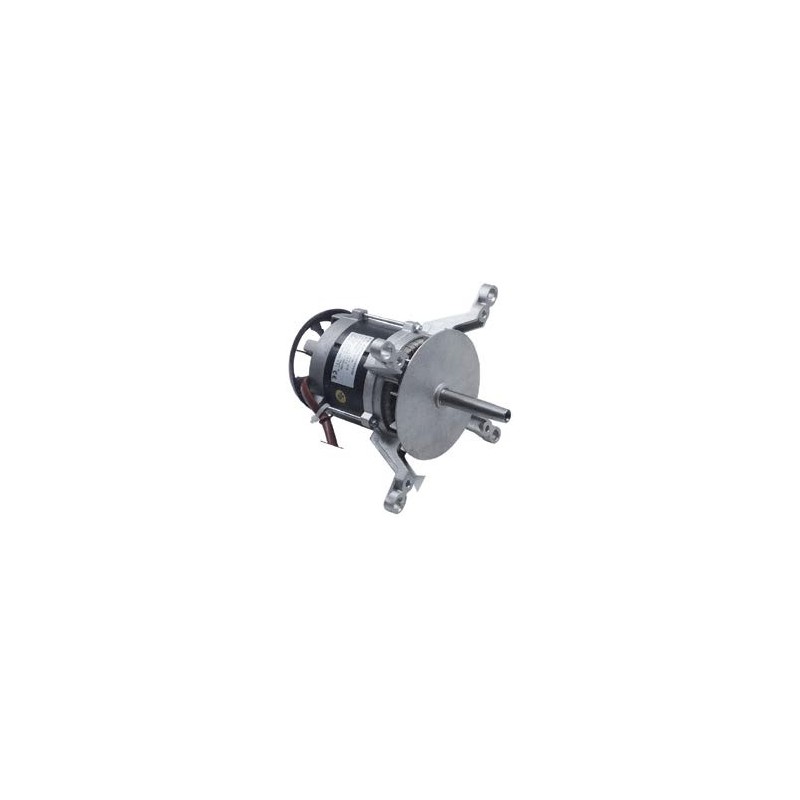

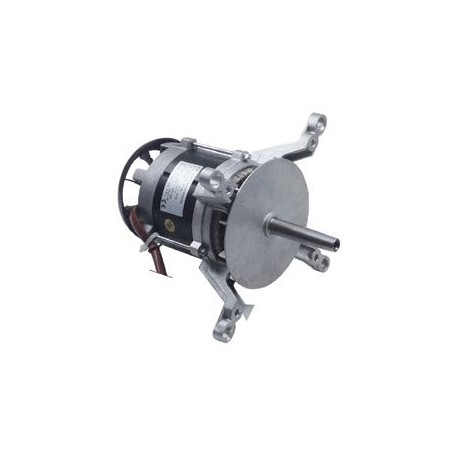

Motor ventilador horno Angelo-Po 5

Motor ventilador horno Angelo-Po 5

Para Modelos:FC1011E, FC1011G, FC1221E, FC1221G, FC611E, FC611G, FM1011E1,FM1011E1-VERS.2006, FM1011E2, FM1011E2-VERS.2006, FM1011E3,FM1011G1, FM1011G1-VERS.2006, FM1011G2, FM1011G2-VERS.2006,FM1011G3, FM1221E1, FM1221E1-VERS.2006, FM1221E2, FM1221E2-VERS.2006, FM1221E3, FM1221G1, FM1221G2, FM1221G3, FM2011E2-VERS.2006, FM2011G2-VERS.2006, FM2021E1, FM2021E2, FM2021E2-VERS.2006, FM2021E3, FM2021G1, FM2021G2, FM2021G3, FM611E1,FM611E1-VERS.2006, FM611E2, FM611E2-VERS.2006, FM611E3,FM611G1, FM611G1-VERS.2006, FM611G2, FM611G2-VERS.2006,FM611G3, FM721E1, FM721E1-VERS.2006, FM721E2, FM721E2-VERS.2006, FM721E3, FM721G1, FM721G1-VERS.2006
Potencia: 0,55 Kw
Tension: 230/400 V
Fases: 1
Frecuencia: 50/60 Hz
Revoluciones: 1400 rvm
Velocidades: 1
Longitud 1: 200 mm
Longitud 2: 53 mm
Longitud 3: 32 mm
Diametro 1: 18 mm
Diametro 2: 15 mm
Rosca de sujecion: M10x1
Revoluciones a 50 HZ - 1400 rev/min
revoluciones a 60 Hz: 1700
Aplicacion: Motor de aire caliente
Condensador apropiado 31,5F
Cos(fi) 0,72
